TEFLON PFA/FEP Lined Pipes
 | PFA/FEP lined pipes are resistant to most chemicals. |
| Available in wide range of size to meet needs of chemical, petrochemical, pharmaceutical and food processing industry. |
| Available in 25 mm (1") NB to 300 mm (12") NB and length from 100 mm (4") to 3000 mm (120") |
| Pipe material option in C.S. or S.S. as per ASTM A-106 Gr. B |
| Pipe rating option as per Schedule 40 or 20 ( Seamless Pipe ) |

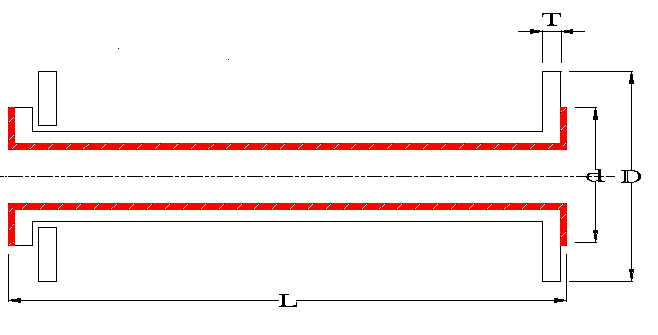

Dimension Chart
|
Nominal Bore |
Lining Thickness (mm) |
D (mm) |
d (mm) |
T (mm) |
L (mm) |
||
|
Inches |
MM |
Min. |
Max. |
||||
|
1 |
25 |
3 |
108 |
51 |
14.5 |
100 |
3000 |
|
1 ½ |
40 |
3 |
127 |
73 |
17.5 |
100 |
3000 |
|
2 |
50 |
3 |
152 |
92 |
19.5 |
100 |
3000 |
|
3 |
80 |
3 |
191 |
127 |
24 |
100 |
3000 |
|
4 |
100 |
4 |
229 |
157 |
24 |
100 |
3000 |
|
6 |
150 |
5 |
279 |
216 |
25.5 |
100 |
2000 |
|
8 |
200 |
6-6.5 |
343 |
270 |
29 |
100 |
2000 |
|
10 |
250 |
7-7.5 |
406 |
324 |
30.5 |
100 |
1000 |
|
12 |
300 |
7.5-8 |
483 |
381 |
32 |
100 |
500 |
Standard Pipe confirm to the following
| Pipe body from C.S. or S.S. as per ASTM A-106 Gr. B (Customer specified) |
| Pipe rating will be Schedule 40 or 20 ( Seamless Pipe )(Customer specified) |
| Pipe’s all flanges will be 150# |
| Pipe’s all flanges drilled to be ANSI B 16.5 or customer specified. |
|
LINING SPECIFICATION |
|
|
LINING MATERIAL |
PFA / FEP |
|
LINING THICKNESS |
3 to 8 MM ALL WETTED PARTS |
|
TEMP. WITHSTAND |
FEP 205°C |
|
TEST PRESSURE |
|
|
PIPE |
20 Kg / Cm² |
|
SPARK TEST |
15 KV DC |
All dimensions are in mm, unless specified.
