Cross
 | PFA/FEP lined cross are resistant to most chemicals. |
| Available in wide range of size to meet needs of chemical, petrochemical, pharmaceutical and food processing industry. |
| Available in 25 mm (1") NB to 300 mm (12") NB and length from 100 mm (4") to 3000 mm (120") |

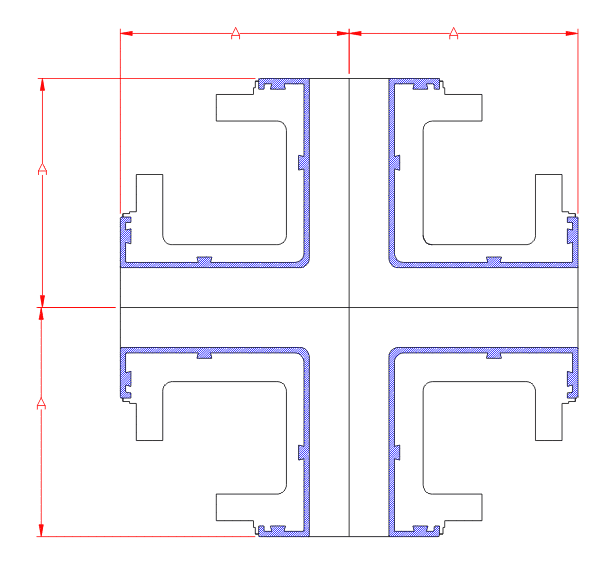

Dimension Chart
|
Nominal Bore Inches MM |
Lining Thickness |
A (mm) |
OD (mm) |
d (mm) |
t (mm) |
|
|
1 |
25 |
3 |
178 |
108 |
51 |
14.5 |
|
1 1/2 |
40 |
3 |
204 |
127 |
73 |
17.5 |
|
2 |
50 |
3 |
228 |
152 |
92 |
19.5 |
|
3 |
80 |
3 |
208 |
191 |
127 |
24 |
|
4 |
100 |
4 |
330 |
229 |
157 |
24 |
|
5 |
150 |
5 |
406 |
279 |
216 |
25.5 |
|
6 |
200 |
6.5 |
458 |
343 |
270 |
29 |
|
10 |
250 |
7.5 |
558 |
406 |
324 |
30.5 |
|
12 |
300 |
8.5 |
610 |
483 |
381 |
32 |
All dimensions are in mm, unless specified.
