45° Elbow

bulletPFA/FEP elbows are resistant to most chemicals.
bulletAvailable in wide range of size to meet needs of chemical, petrochemical, pharmaceutical and food processing industry.
bulletAvailable in 25 mm (1") NB to 300 mm (12") NB and length from 100 mm (4") to 3000 mm (120")

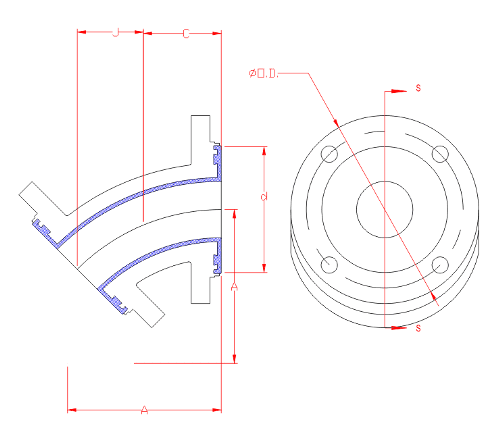

Dimension Chart

Nominal Bore

Inches       MM

Lining

Thickness

C

(mm)

J

(mm)

OD

(mm)

d

(mm)

t

(mm)

1

25

3

44

32

108

51

14.5

1 1/2

40

3

57

41

127

73

17.5

2

50

3

64

44

162

92

19.5

80

3

76

54

191

127

24

4

100

3

102

71

229

157

24

5

150

5

127

90

279

216

25.5

6

200

6.5

140

98

343

270

29

10

250

7.5

165

114

406

324

30.5

12

300

8.5

190

135

453

381

32

90° Elbow

bulletPFA/FEP elbows are resistant to most chemicals.
bulletAvailable in wide range of size to meet needs of chemical, petrochemical, pharmaceutical and food processing industry.
bulletAvailable in 25 mm (1") NB to 300 mm (12") NB and length from 100 mm (4") to 3000 mm (120")

Dimension Chart

Nominal Bore

Inches       MM

Lining

Thickness

A

(mm)

OD

(mm)

d

(mm)

t

(mm)

1

25

3

89

108

51

14.5

1 1/2

40

3

102

127

73

17.5

2

50

3

114

152

92

19.5

80

3

140

191

127

24

4

100

4

165

229

157

24

5

150

5

203

279

216

25.5

6

200

6.5

229

343

270

29

10

250

7.5

279

406

324

30.5

12

300

8.5

305

483

381

32








All dimensions are in mm, unless specified.

Lined pipes Reducers TEE Elbow Cross

Contact Information
Polycoat Flowchem
Telephone : 91-79-2584 1713
FAX : 91-79-2584 1831
3814, GIDC, Phase-IV, Vatva, Ahmedabad-382 445, India
E mail polycoatad1@sancharnet.in
* Teflon, Tefzel are registered trade mark of Dupont, USA
