Flush bottom valve
Home Feed Back Catalogue

Home PFA/FEP lined Flush bottom or bottom flush or bottom discharge valves are used to flush tanks and are mounted on bottom. PFA/FEP lining renders it corrosion resistance.

Bottom Discharge/Flush valve

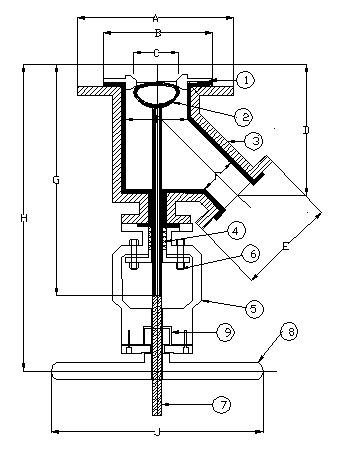

Dimension Chart

SIZE

A

B

C

D

E

F

G

H

I

J

50 x 25

152

90

40

100

108

25

150

220

50

150

80 x 50

190

127

70

160

152

50

330

430

78

200

100 x 80

230

160

88

220

190

75

400

500

100

200

150 x 100

305

210

140

320

230

100

500

600

150

250

Bill Of Material

SR NO.

PART NAME

MATERIAL

1

VALVE SEAT

PTFE/TEFLON

2

SPINDLE

C.S.

3

BODY

C.I. Graded Casting, W.C.B. Or S.S.

4

GLAND

PTFE/TEFLON

5

BONNET

C.S.

6

BOLT

S.S.

7

SCREW

S.S./M.S.

8

WHEEL

C.S./M.S.

9

WHEEL NUT

GUN METAL

LINING SPECIFICATION

LINING MATERIAL

TEFLON / FEP

LINING THICKNESS

 3 MM ALL WETTED PARTS

TEMP. WITHSTAND

205°C TEMP. MAX.

TEST PRESSURE

BODY

20 Kg / Cm²

SEAT

10 Kg / Cm²

SPARK TEST

15 KV DC

All dimensions are in mm, unless specified.
