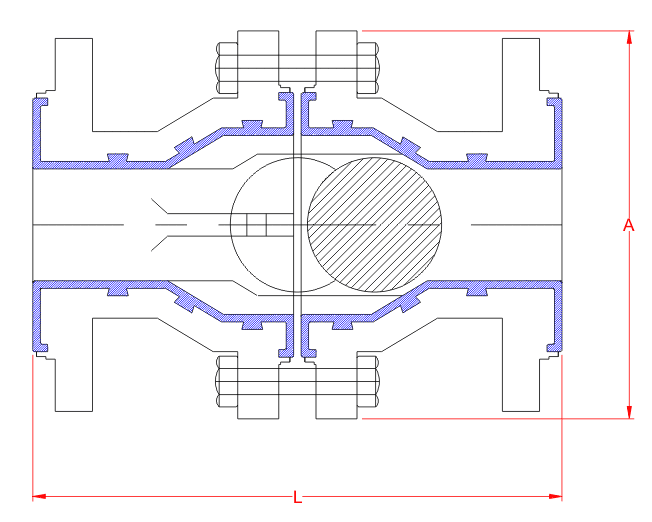

Ball Check NRV
 | Ball check NRV (non return valve) are available in various sizes from 15 mm (1/2") to 200 mm (8"). |
| Option for body material in either CI, WCB or SS 150#. |
| Flanges are drilled as per ANSI B 16.5 or as per customer specifications. |
| All Polycoat valve are coated with high quality, corrosion resistant polyurethane paint. |
Dimension Chart
|
Nominal Bore Inches MM |
Lining Thickness |
L (mm) |
A (mm) |
|
|
1/2 |
15 |
3 |
130 |
105 |
|
3/4 |
20 |
3 |
150 |
115 |
|
1 |
25 |
3 |
127 |
125 |
|
1 1/2 |
40 |
3 |
165 |
160 |
|
2 |
50 |
3 |
178 |
175 |
|
3 |
80 |
4 |
203 |
240 |
|
4 |
100 |
4 |
229 |
270 |
|
6 |
150 |
5 |
400 |
330 |
|
8 |
200 |
5 |
600 |
381 |
'Y' Strainer
| Standard 'Y' strainer are supplied in Stell body. |
| PTFE strainer net. |
| ANSI 150# flange, drilled to ANSI B 16.5 |
|
Nominal Bore Inches MM |
Lining Thickness |
L (mm) |
H (mm) |
|
|
1 |
25 |
3 |
160 |
93 |
|
1 1/4 |
32 |
3 |
200 |
120 |
|
1 1/2 |
40 |
3 |
200 |
120 |
|
2 |
50 |
4 |
230 |
145 |
|
3 |
80 |
4 |
310 |
185 |
|
4 |
100 |
4 |
350 |
220 |
All dimensions are in mm, unless specified.
